2D Shop Drawings

• 2D shop drawings are indispensable to any industry producing parts of even basic complexity
• These drawings contain all the information required to manufacture a part; they are the DNA of parts, almost always stored on a computer and frequently printed out on large drawing sheets
• TMG has the capability to generate these drawings based on sketches, legacy CAD drawings or even the physical parts themselves.

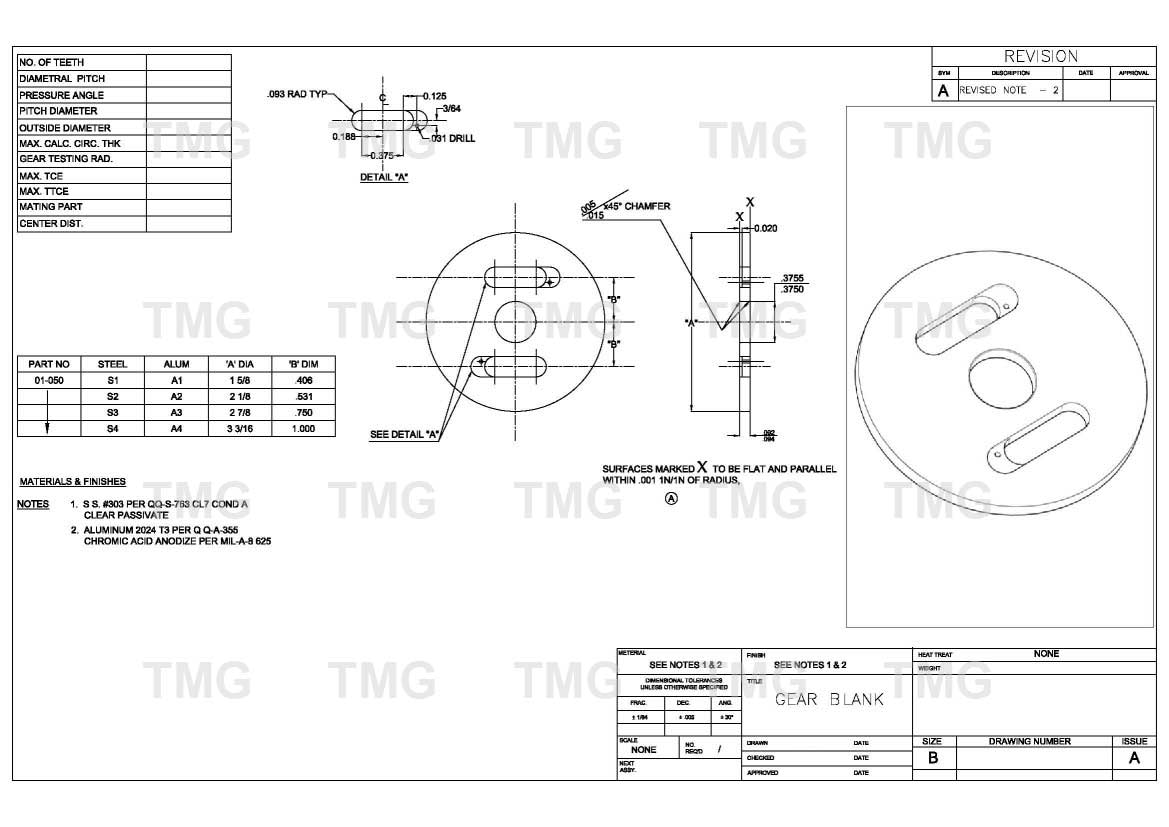

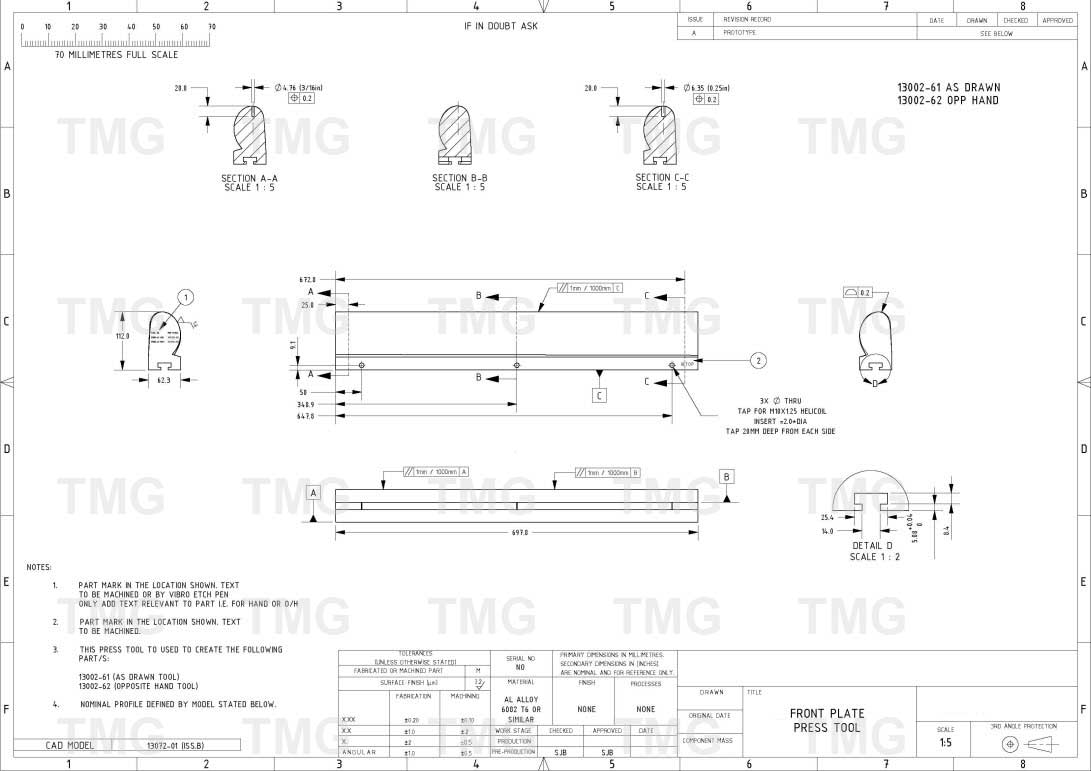

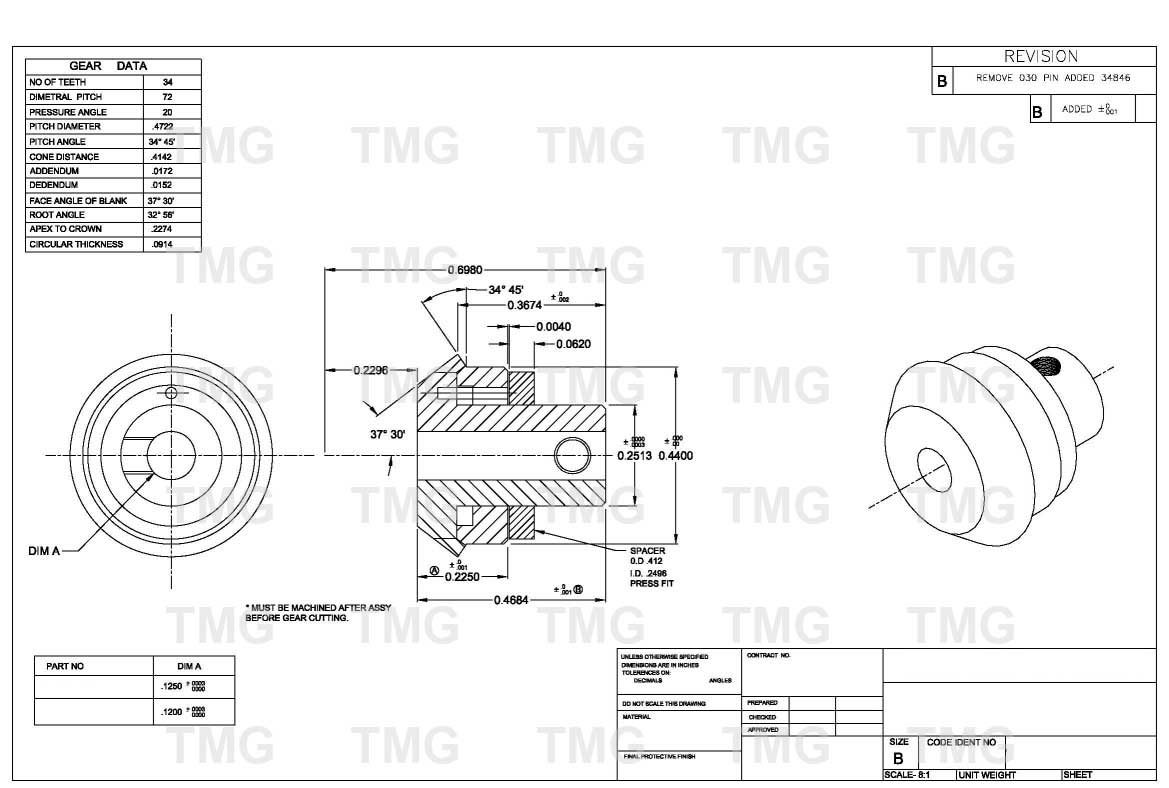

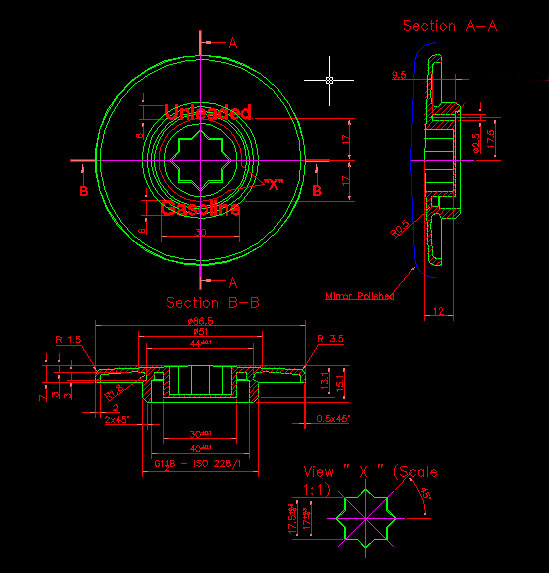

(Click on a drawing to enlarge)





In all probability, TMG already has 2D shop drawing experience in your domain. Our work to date has covered several industries, including but not limited to:

• Capital goods
• Electrical
• Marine
• Automotive
• Architectural millwork and cabinetry
• Furniture

Materials

TMG has created shop drawings for objects made in a variety of materials including metal, wood, stone and plastic.

A typical shop drawing done by TMG depicts several views of the part, each from a different angle, and each annotated with critical dimensions, along with information on surface finishes, tolerances and material specifications.

In the event the shop drawing relates to an assembly (like a folding table), the shop drawing will include an assembly drawing.

TMG usually creates the part in 3D since this results in greater accuracy in the 2D shop drawings described above.

• Receive input information (sketches, old drawings or physical part) from client
• Ascertain from client which CAD platform he prefers TMG use plus drafting styles
• Conduct internal review of input information for completeness
• Request and receive missing information from client
• Agree on price, terms and delivery time
• Commence work, sending progress files and queries every two days
• Conduct executive management review once a week
• Hold videoconferece review with client every ten days
• Complete and deliver 2D shop drawings
